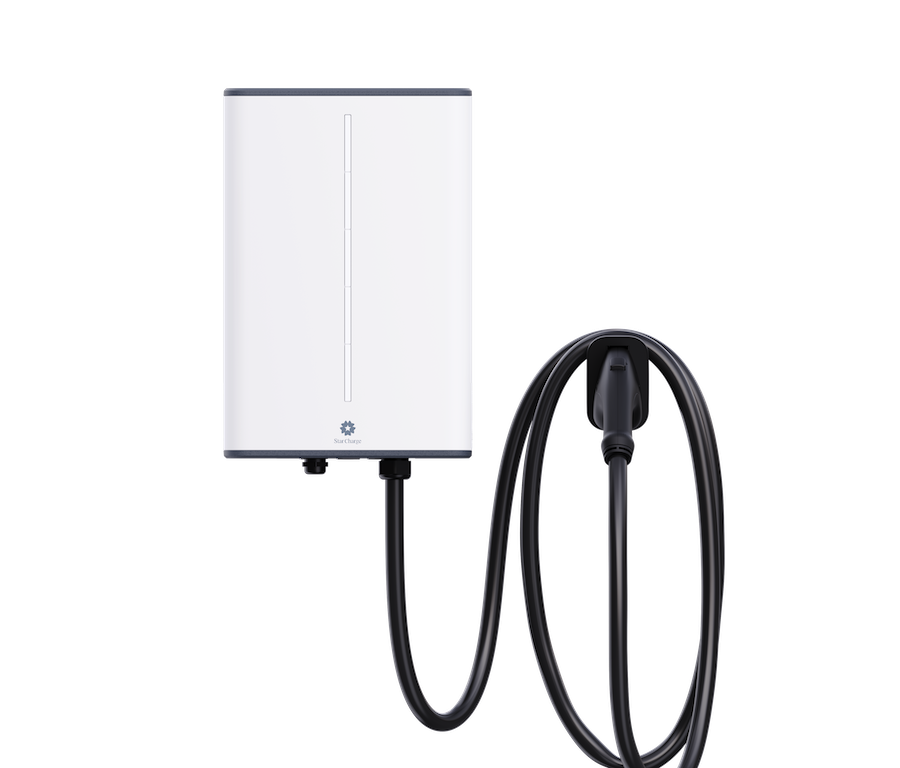

Halo IEC7.4kW bi-directional DC wallbox

V2G

Halo IEC7.4kW bi-directional DC wallbox is a V2G product which has bidirectional power flow for charging and discharging.

Residential

Bidirectional Power Flow

Smart Communication

Robust Environmental Design

Halo IEC7.4kW bi-directional DC wallbox

Rated AC input voltage: 220/230Vac
Rated AC current: 32A
DC output voltage: 200~920V
DC current: 26A Max
Rated charging power: 7.4kW
Ingress protection ((indoor and outdoor areas): IP65,IK10
Dimensions (W × H × D):323×480×175mm
Weight: 23kg

HaloIEC7.4kW-3

Vesta Three Phase

4-in-1 Hybrid Inverter

Peak Efficiency: 98.10%-98.40%
Max. Input Voltage: 1000V DC
MPPT Operating Voltage Range: 140V to 950V DC
Max. Output Power: 6600VA to 13800VA
Grid Voltage: 220V AC / 230V AC
Audible Noise: < 45 dB (A) @ 1m
Interface: RS485, Bluetooth, WiFi
Dimensions (W x H x D): 484 x 400 x 177mm
Weight: 17kg
Ingress Protection: IP65

vBox

Whole Home Energy Backup

Rated Energy: 6.9kWh – 20.7kWh
DOD: ＞90%
Max. Output Power: 3.2kW – 9.6kW
Charge-discharge Rate: 0.42 C
Dimensions (W x D x H): 799 × 218 x 767/959/1150/1342/1533mm
Weight: 80kg – 196kg
Ingress Protection: IP55
Audible Noise: <30dB


MID

Microgrid Interconnect Device

Rated Voltage: 220V/230V, 380V/400V
Rated Frequency: 50Hz/60Hz
Max. Output Current: 63A
Rated Voltage: 220V/230V, 380V/400V
Rated Frequency: 50Hz/60Hz
Max. Output Current: 63A
Switchover Time: ＜20ms
Interface: RS485
Dimensions (W x H x D): 500 x 440 x 120mm
Ingress protection: IP65
